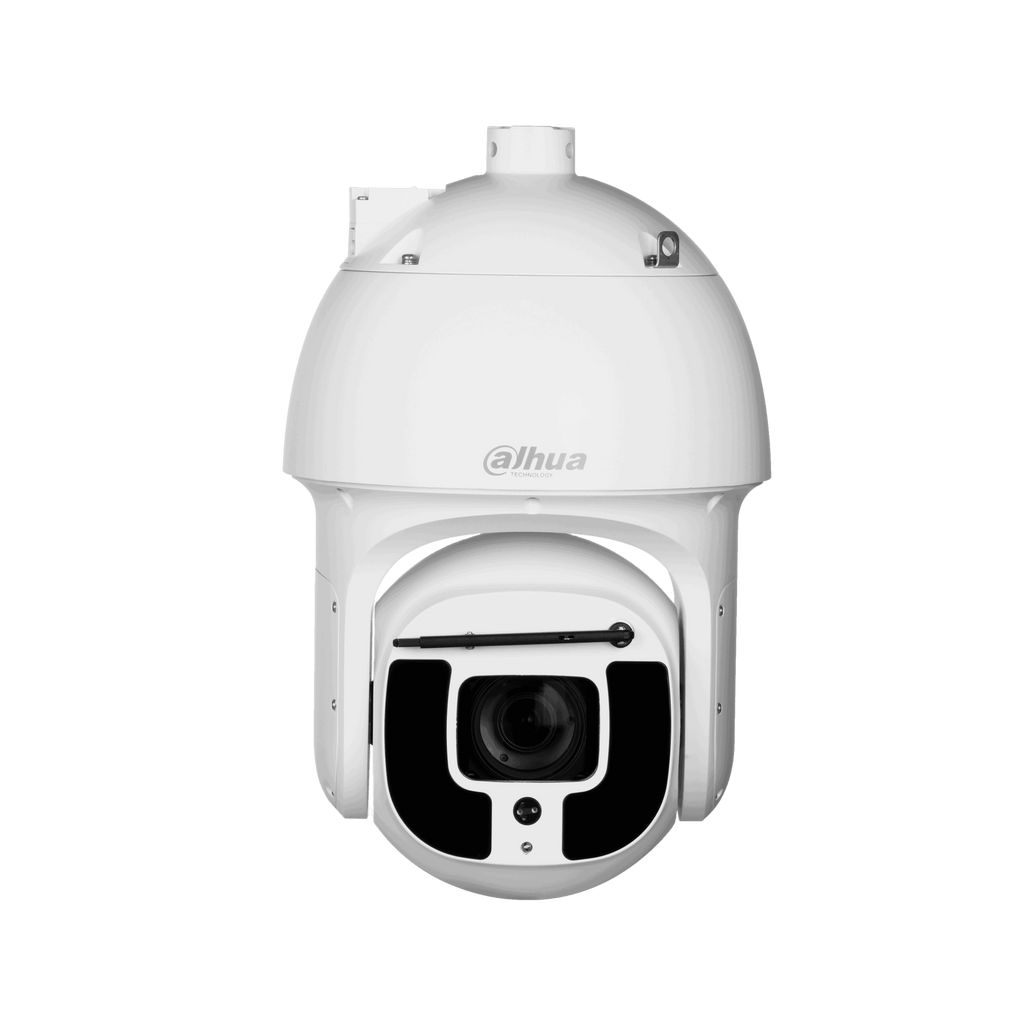

Dahua Ultra 4K PTZ FullHD 40 x zoom

33 500 kr

SD8A840-HNF-PA
Läs mer

1203762
  • Kunnig support till våra kunder
  • Snabba leveranser
  • Stort eget lager
  • Frågor? Ring gärna: 0490-375 90

Liknande produkter

Värmekamera BF2221 - Hybrid
Värmekamera BF2221 - Hybrid
1207711
TPC-BF2120-1F4
13 800 kr
IP Bullet DAHUA 4MP 2,7 - 13,5 mm AI BLACK
Dahua Technology IP Bullet DAHUA 4MP 2,7 - 13,5 mm AI BLACK
1203708
4 500 kr
Watec 910HX/RC
Watec 910HX/RC
1201501
Ersättare: WAT-3500
5 480 kr
WAT-2200 3G SDI-kamera FullHD

Beskrivning av Dahua Ultra 4K PTZ FullHD 40 x zoom



































































































































































































































































































































































































  • Camera
    Image Sensor1/1.8" CMOS
    Pixel8 MP
    Max. Resolution3840 (H) x 2160 (V)
    ROM8 GB
    RAM2 GB
    Electronic Shutter Speed1/1 s–1/30,000 s
    Scanning SystemProgressive
    Min. IlluminationColor: 0.005 Lux@F1.4

    B/W: 0.0005 Lux@F1.4

    0 Lux@F1.4 (illuminator on)
    Illumination Distance500 m (1640.42 ft)
    Illuminator On/Off ControlZoom Prio; Manual; SmartIR
    Illuminator Number10 IR lights
    WiperSmart wiper
    Lens
    Focal Length5.6 mm–223 mm
    Max. ApertureF1.4-F4.5
    Field of ViewH: 63.9°–2.0°; V: 37.3°–1.1 °; D: 71.2°–2.3 °
    Optical Zoom40x
    Focus ControlAuto; Semi-Auto; Manual
    Close Focus Distance0.5 m–2 m (1.64 ft–6.56 ft)
    Iris ControlAuto; Manual
    DORI DistanceDetectObserveRecognizeIdentify
    4400 m

    (14435.70 ft)
    1740 m

    (5708.66 ft)
    880 m

    (2887.14 ft)
    440 m

    (1443.57 ft)
    PTZ
    Pan/Tilt RangePan: 0° to 360°
    Tilt: –30° to +90°, auto flip 180°
    Manual Control SpeedPan: 0.1°/s–240°/s
    Tilt: 0.1°/s–100°/s
    Preset SpeedPan: 240°/s; Tilt: 120°/s
    Preset300
    Tour8 (up to 32 presets per tour)
    Pattern5
    Scan5
    Speed AdjustmentYes
    Power-off MemoryYes
    Idle MotionPreset; Tour; Pattern; Scanning
    ProtocolDH-SD
    Pelco-P/D (auto recognition)
    General Intelligence
    Event TriggerMotion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly.
    IVSObject Abandoned; Object Missing
    Artificial Intelligence
    Video MetadataSupport human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
    Perimeter ProtectionTripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
    Auto TrackingYes
    Video
    CompressionSmart H.265+; H.265; Smart H.264+; H.264; MJPEG (Sub Stream 1)
    Streaming Capability3 streams
    Resolution4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576);

    CIF (352 × 288)
    Frame RateMain stream: 4K/1080p/1.3M/720p (1–25/30 fps)
    Sub stream 1: D1/CIF (1–25/30 fps)
    Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
    Bit Rate ControlVariable; Constant
    Bit RateH264: 512 Kbps–16384 Kbps
    H265: 256 Kbps–10240 Kbps
    Day/NightAuto (ICR); Color; B/W
    BLCYes
    WDR120 dB
    HLCYes
    White BalanceAuto; Indoor; Outdoor; Tracking; Manual; Sodium Lamp; Natural; Street Lamp
    Gain ControlAuto; Manual
    Noise Reduction2D; 3D
    Motion DetectionYes
    Region of Interest (RoI)Yes
    DefogOptical
    Digital Zoom16x
    Flip0°; 180°
    Privacy MaskingUp to 24 areas, and up to 8 areas in the same view
    S/N Ratio≥ 55 dB
    Audio
    CompressionG.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723
    Network
    Ethernet1 RJ-45 Port (10/100Base-T)
    ProtocolIPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP
    InteroperabilityONVIF Profile S&G&T; CGI
    Streaming MethodUnicast; Multicast
    User/Host20 (total bandwidth 64 MB)
    StorageFTPMicro SD card (512GB)
    BrowserIE7 and later versions
    Chrome 42 and earlier versions
    Firefox 52 and earlier versions
    Safari
    Management SoftwareSmart PSS; DSS; DMSS; Easy4ip; IVSS
    Mobile PhoneiOS; Android
    Certification
    CertificationsCE: EN55032/EN55024/EN50130-4
    FCC: Part15 subpartB, ANSI C63.4-2014
    Port
    Analog Output1 BNC
    RS-4851 (baud rate range:1200 bps–9600 bps)
    Audio I/O1/1
    Alarm I/O7/2
    Power
    Power Supply36 VDC/2.23A±25%
    Hi-PoE
    Power Consumption30 W
    48 W (IR light on)
    Environment
    Operating Temperature–40 °C to +70 °C (–40 °F to +158 °F)
    Operating Humidity≤ 95%RH
    ProtectionIP67; TVS 6000V lightning protection; surge protection; voltage transient protection
    Structure
    CasingMetal
    Dimensions415.6 mm × Φ26 2 mm (16.36" × Φ10.31")
    Net Weight10 kg (22.05 lb)
    Gross Weight12 kg (26.46 lb)


























Produktblad
