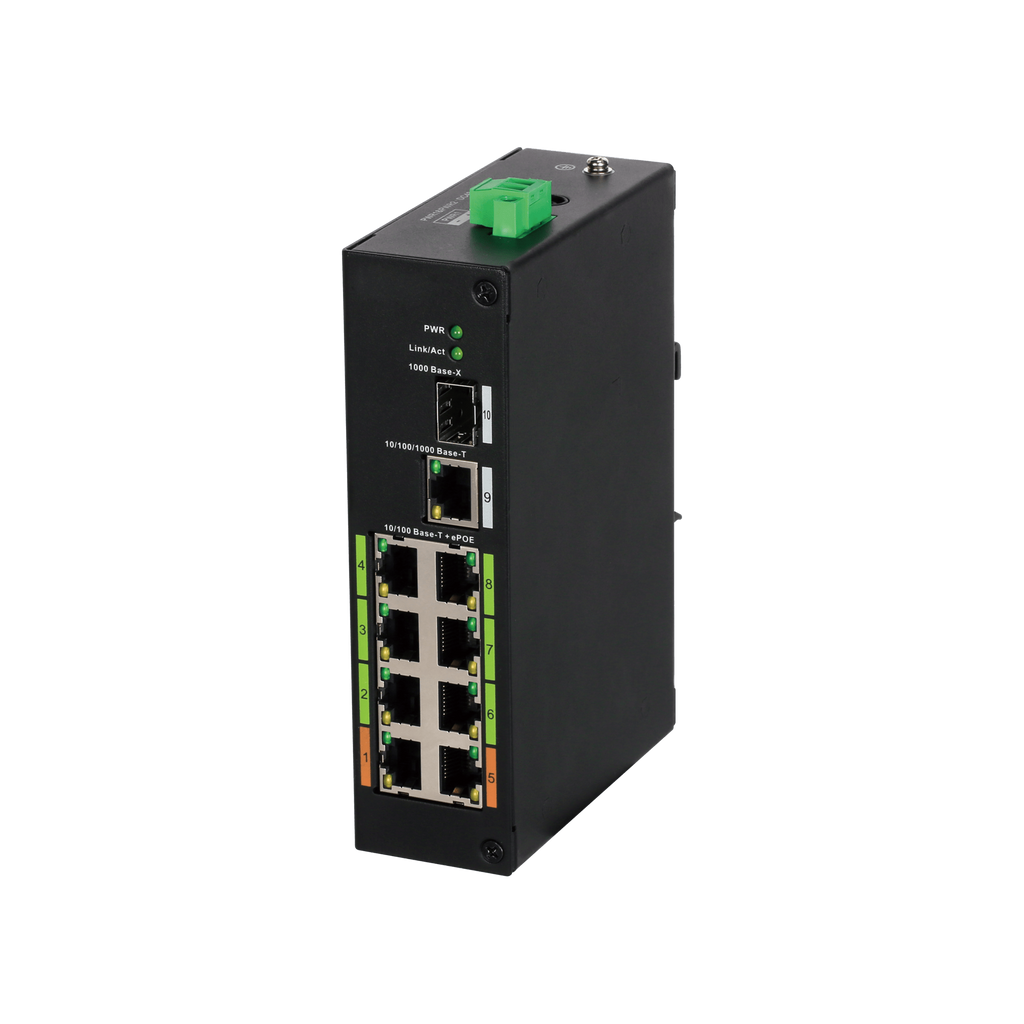

Dahua PoE-switch 8-port 120W

2 600 kr

LR2110-8ET-120
Läs mer

6268
  • Kunnig support till våra kunder
  • Snabba leveranser
  • Stort eget lager
  • Frågor? Ring gärna: 0490-375 90

Liknande produkter

4 portars PoE-switch
4 portars PoE-switch
6272
PFS3006-4ET-60-V2
1 100 kr
Switch 16-kanaler PoE+ Managed CCTV-mode (240W)
Switch 8-kanaler PoE+
Switch 8-kanaler PoE+
6260
PFS3110-8ET-96
1 900 kr

Beskrivning av Dahua PoE-switch 8-port 120W





































































Technical Specification
ModelDH-LR2110-8ET-120
Ethernet Port1*1000 Base-X

1*10/100/1000 Base-T

8*10/100 Base-T(PoE power supply)
PoE Power ConsumptionPort1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity8.8Gbps
Packet Forwarding Rate4.17Mpps
Packet Buffer Memory2.75Mb
MAC Table Size8K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V power adapter
Lightning ProtectionCommon Mode 4KV

Differential Mode 2KV
Working Temperature﹣30°C~65°C
Weight0.59kg
Dimension(W×D×H)150mm×100mm×42mm



















































































































Transmission Performance:
Cable (m)Bandwidth (Mbps)PoE Load Capacity (W)Hi-PoE Load Capacity (W)Working Mode
10010025.553IEEE/E100
20010025.533E100
3001001919E100
400101717E10
500101313E10
8001077E10
ePoE switch power supply voltage 48V

CAT5E/CAT6, max. DC resistance < 10Ω/100m
Cable (m)Bandwidth (Mbps)PoE Load Capacity (W)Hi-PoE Load Capacity (W)Working Mode
10010025.553IEEE/E100
20010025.547E100
30010025.532E100
400102326E10
500102020E10
800101313E10
ePoE switch power supply voltage 53V

CAT5E/CAT6, max. DC resistance < 10Ω/100m







































Accessories
SFP ModuleDescription
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
EoC (Ethernet over Coax)Description
LR10021*10/100 Mbps Base-TX + 1*BNC

RG59 coaxial cable:

400m/100Mbps, 1000m/10Mbps



























LED Indicator
Working ModeLED Indicator
IEEE modeNormally on
E100On for 3 seconds, off for 1 second
E10On for 1 second, off for 1 second
